The AeroAudio BT is a bluetooth receiver and transmitter for connecting bluetooth devices to a broadcast studio. Not only can music be played from, for example, a mobile phone, but the phone can also be used as a telephone link and a conversation can be broadcasted directly through WhatsApp, Skype, telephony or other communication apps. The caller receives the return signal from the studio.

​

Status LED indicator
The LED will light up when the 12VDC power supply is present and varies in state of standby or connected.

​

12VDC POWER INPUT
Ratings: 12VDC (9~18 volt) at 250mA. The polarity is not important
Power supply is included, options: 115V/USA - 230V/AUS - 230V/EUR - 230V/UK

​

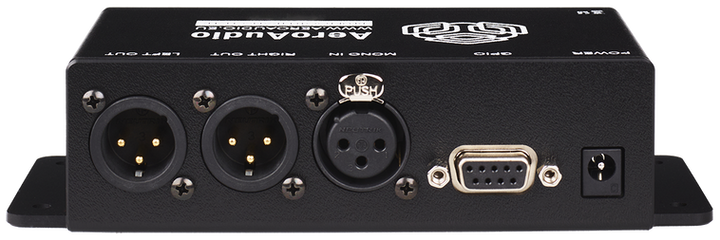

AUDIO OUT (TO STUDIO)
Stereo left and right output; connect to your equipment with standard XLR cable (XLR 3pin)
- PIN1: Ground (Shield)
- PIN2: Positive (Red)
- PIN3: Negative (Blue)

​

AUDIO IN (TO CALLER)
Mono input; connect to the studio to the BT1 with standard XLR cable (XLR 3pin)
- PIN1: Ground (Shield)
- PIN2: Positive (Red)

- PIN3: Negative (Blue)

​

GPIO CONTROL
GPI control to remotely activate or deactivate the transmission link.
GPO output to remotely indicate the transceiver’s status
